Max. Power @ 8000rpm
Max torque @ 5500rpm
compression ratio
Bore × Stroke
L×W×H(mm) | 1890x690x1140 |
Wheelbase | 1310mm |
Seat Height | 810mm |
Front Wheel | 110/70-12 |
Rear Wheel | 120/70-12 |
Frame Type | Cradle |
Net Weight | 108kg |
Max Payload | 150kg |
Min Ground Clearance | 120mm |
Engine | Single cylinder, 4-stroke |
Displacement | 150cc |
Compression Ratio | 9.8:1 |
Bore×Stroke | 57.4mmx57.8mm |
Max Power | 7kw/8000rpm |
Max Torque | 10.5N.m/5500rpm |
Max Speed | 85km/h |
Fuel Tank Capacity | 10L |
Battery | 12V/7Ah |
Dashboard | Intelligent colorful TFT Dashboard |

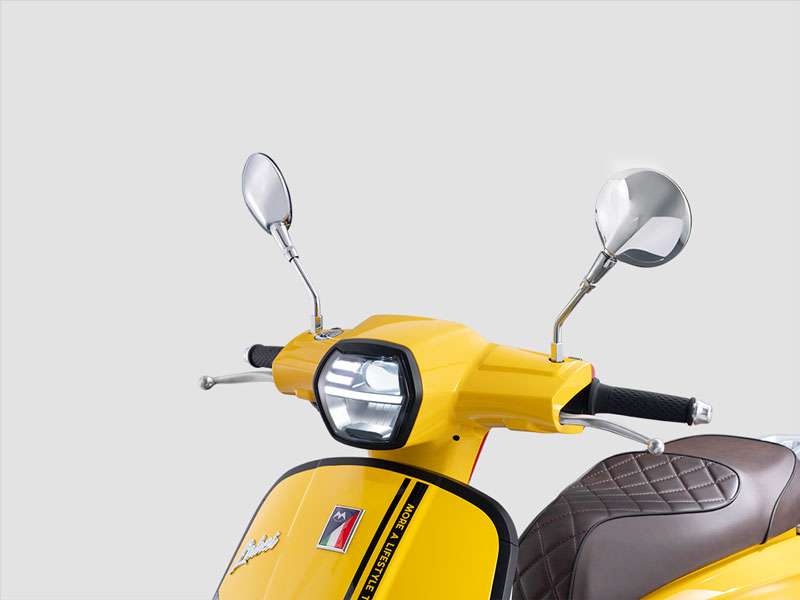

Light | LED |

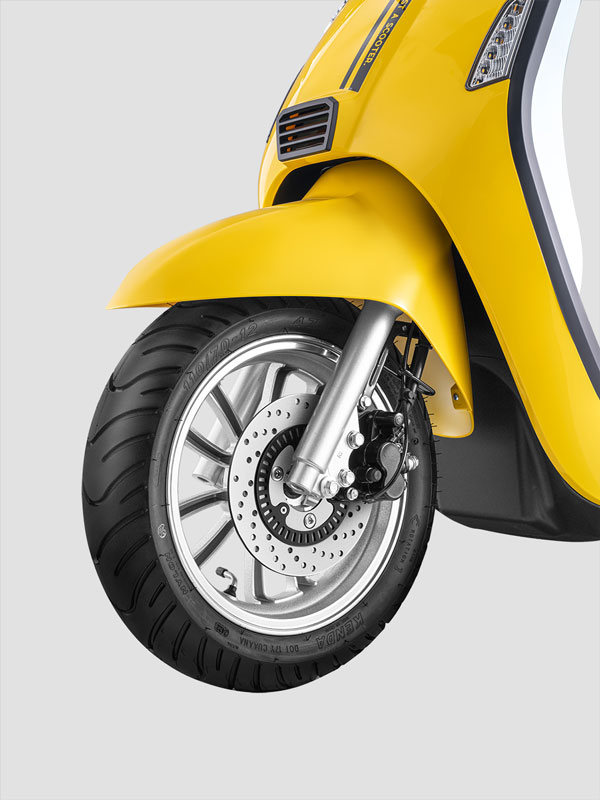

Front Brake | Single disc, 2 pistons |
Rear Brake | Single disc, 2 pistons |
Front Suspension | Monotube spring |
Rear Suspension | Monotube spring |
ABS | Standard(front&rear) |

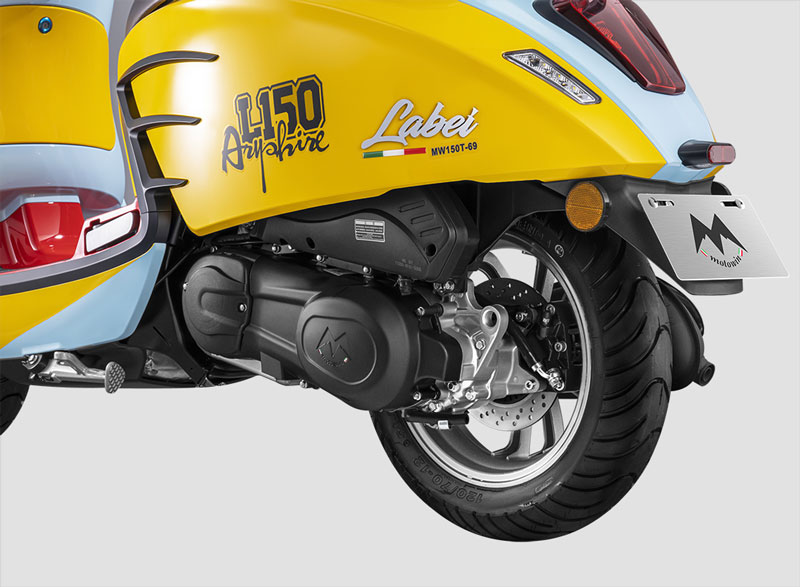

The new Battle-ax II 150cc engine
Fuel consumption as low as 2.5L/100km
The cruising range is about 360 km
High brightness
Low power consumption
Bluetooth
Smart key
Anti-theft

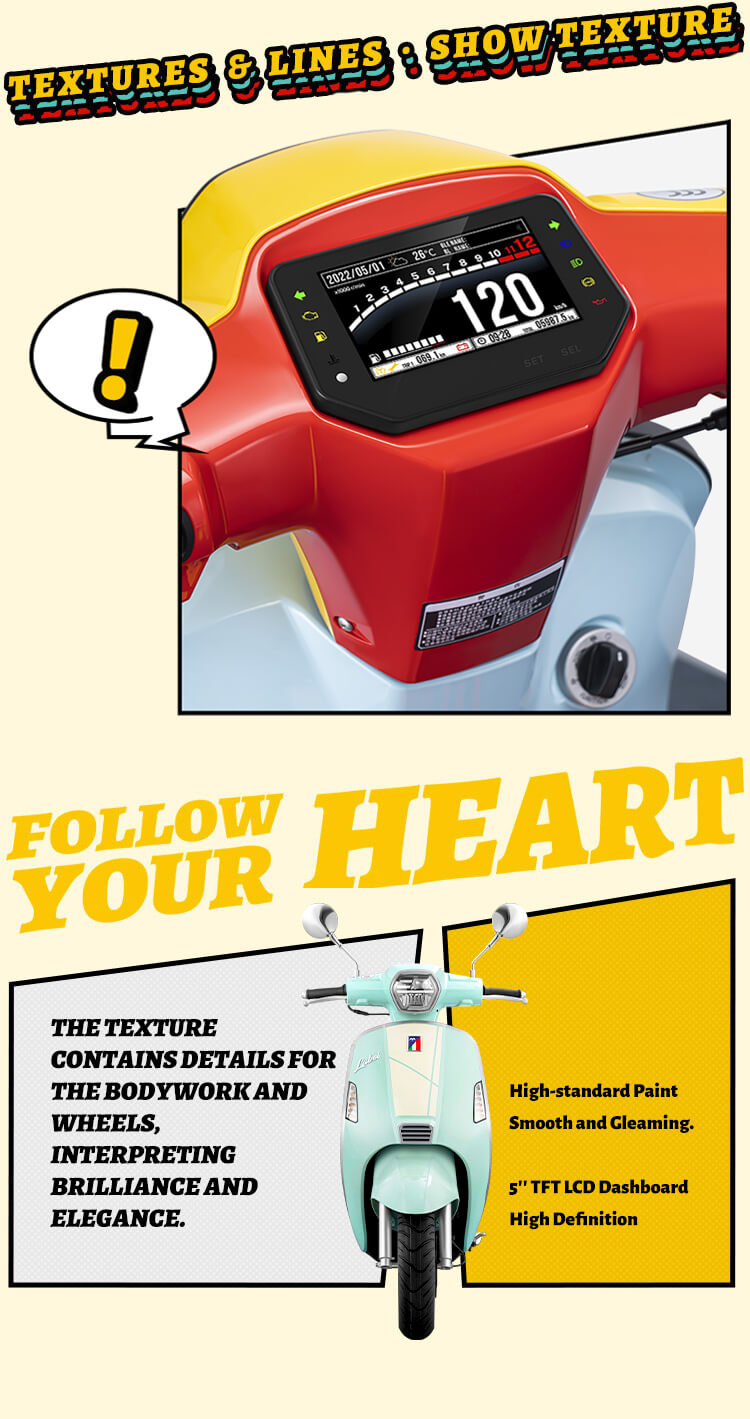

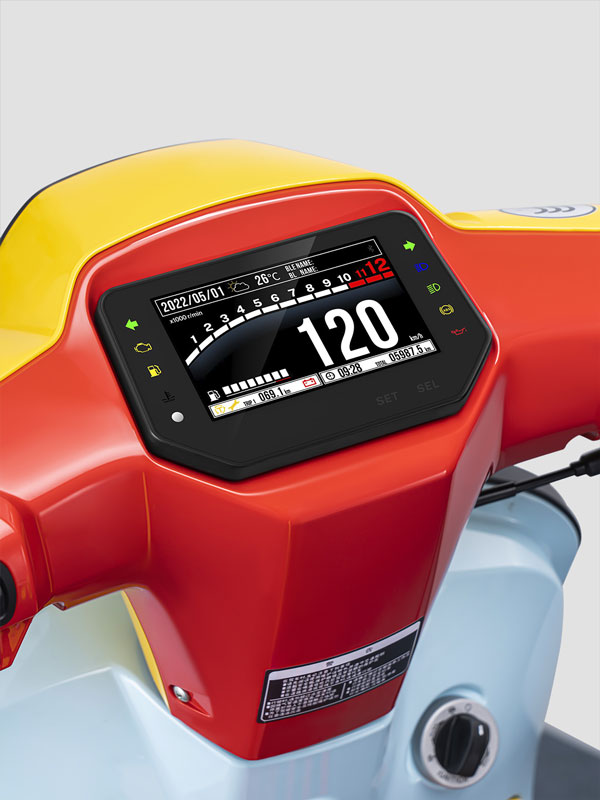

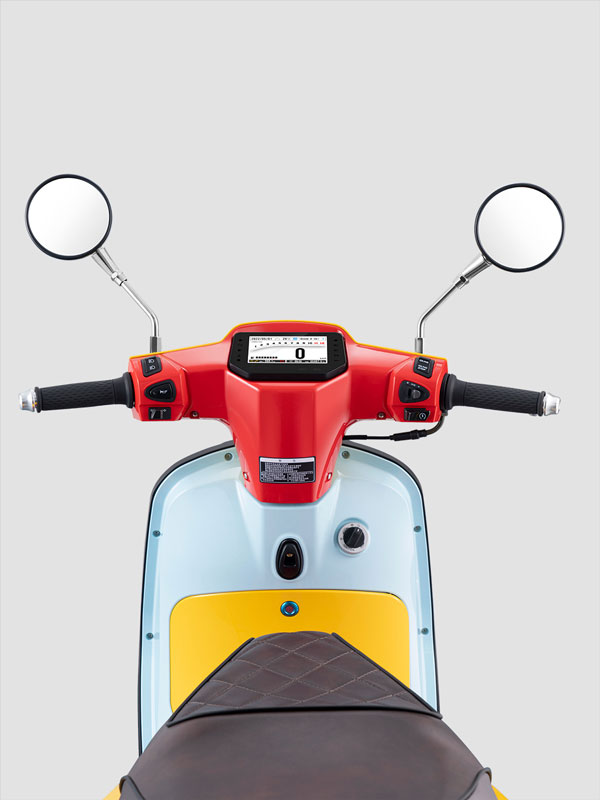

5" TFT LCD colorful dashboard
High Definition
Imported

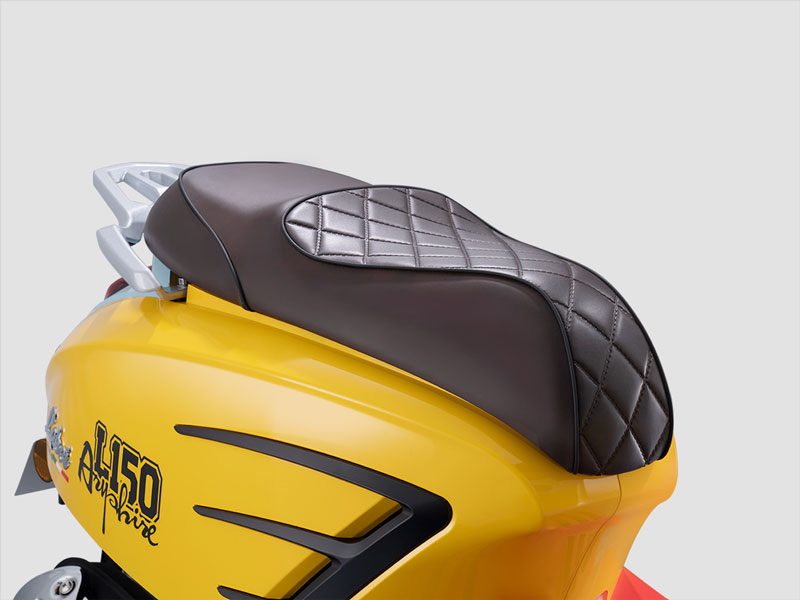

Soft and smooth
Front & Rear
Safe
